The IPO-400 lightning protection device performance tester is used for the measurement of various lightning protection device indicators, and on this basis, the performance of the lightning protection device is evaluated. IPO-400 is a portable lightning arrester tester with an intuitive interface and simple operation. It is widely used in lightning protection facilities such as telecommunications, electric power, meteorology, computer rooms, power distribution lines, tower transmission lines, gas stations, and factory grounding grids. Lightning arrester performance test.

Has the lightning arrester been broken down?

Has the performance of the lightning arrester decreased?

Can the SPD that has been used for many years continue to be used?

IPO helps you quickly and accurately analyze!

IPO-400 product features

◆ It is suitable for the measurement of DC parameters of overvoltage protection components such as various brands of A, B, C lightning protection modules, N-PE modules, and vacuum surge arresters.

◆ The meter adopts high-performance chip control, which is highly intelligent and easy to measure. It can automatically measure the on-voltage, leakage current and insulation resistance of the lightning protection device within 10 seconds, and automatically convert the AC value.

◆ When measuring, it has the function of automatically distinguishing the device, and it will give an audible and visual alarm to the test product whose leakage current value is greater than 20μA and the insulation resistance value is less than 50MΩ.

◆ Simple measurement: automatic measurement can measure the on-voltage and leakage current of the lightning protection element within 10 seconds.

◆ With high-voltage short-circuit protection, over-current protection and other functions, the high-voltage self-discharge time is 0.5 seconds.

◆ With real-time clock display function

◆ With memory storage function. It can be classified and stored according to device performance, and can store 300 records in total. The historical measurement records can be searched according to the serial number classification.

◆ The instrument adopts a large-screen LCD display and a full Chinese menu interface, which is easy to operate, highly accurate and reliable.

◆ The meter works with rechargeable Ni-MH batteries, and there is a low battery warning.

◆ With 5 minutes automatic shutdown function.

◆ The meter is light in weight, simple to operate, and easy to carry.

◆ Data interface, can import test results into PC for analysis and management.

◆ Equipped with Chinese background management software to facilitate data management and analyze the performance of various types of lightning protection components (can be used as a reference for the selection and purchase of lightning protection devices)

Main functions of IPO-400 products

1. It is suitable for the measurement of various lightning protection device indicators, and the performance of the lightning protection device is evaluated on this basis.

2. Check whether the lightning arrester has been broken down.

3. Check whether the performance of the lightning protection device has decreased.

4. It is widely used in the performance test of lightning arresters with lightning protection facilities, such as telecommunications, electric power, meteorology, computer rooms, power distribution lines, tower transmission lines, gas stations, and factory grounding grids.

Main technical indicators of IPO-400 products

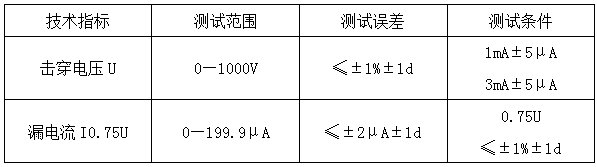

(1) A, B, C, module test

(2) N-PE module test

(3) Discharge tube test

(4) Other indicators

Withstand voltage: AC: 2500V 50Hz 1Min

Power supply: DC: 9.6V 2/3AA rechargeable battery power supply

Power consumption: 10W

Charger: DC: 10.5V 200mA (core wire is positive)

Storage temperature and humidity: -10℃~55℃≤90%RH

Working temperature and humidity: 0~45℃≤85%RH
