1 Application range

This series of relays are used in the power control loops of various protection and automatic control devices. The power-off delay is used to alarm the current state of the power supply in the loop, and can monitor the power loop controlled by the fuse or air switch.

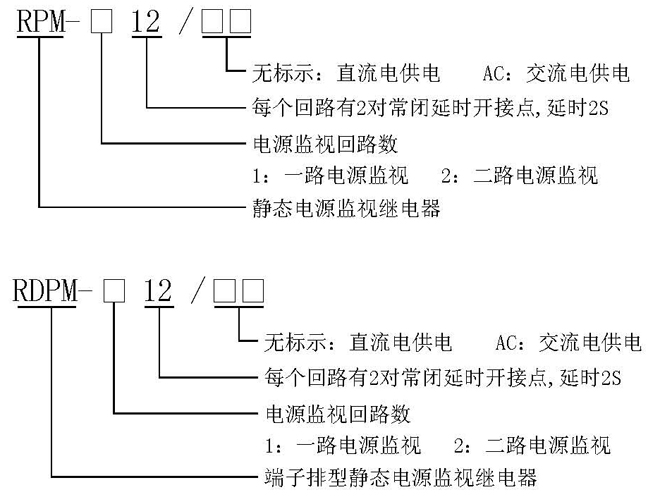

2 Model definition

３ Main performance

3.1 Adopt high-performance sealed relay, moisture-proof, dust-proof, uninterrupted wire, high reliability.

3.2 There will be indicator lights after the relay is activated.

3.3 The electrical and mechanical life of the relay is long.

3.4 High insulation withstand voltage level, large contact capacity and low contact resistance.

4 Technical conditions

4.1 Environmental reference conditions

Environment temperature: 20±2℃

Relative humidity: 45%～75%

Atmospheric pressure: 86～106KPa

4.2 Normal use conditions

Ambient temperature: -10℃～+50℃

Relative humidity of environment: not more than 90%

Atmospheric pressure: 80～110KPa

Limit temperature during storage and transportation: -25℃～+70

The altitude of the place of use: no more than 2500 meters

The surrounding medium of the use environment has no explosion hazard; it does not contain corrosive gas; the concentration of conductive dust contained should not reduce the insulation level below the allowable limit value.

4.3 Characteristic parameters

4.3.1 Rated voltage: 48VDC 110VDC 220VDC 220VAC, allowable voltage fluctuation range: 0.8～1.15 times the rated voltage.

4.3.2 Action value: about not more than 70% of rated voltage

4.3.3 Return time after power failure: about 2S

4.3.4 Action time: not more than 20mS

4.4 Maximum capacity of contacts:

Cut-off load capacity: DC 250V or less, τ=5ms, inductive load 50W, resistive load 150W;

AC below 250V, load 1200VA;

Allow long-term connection current: 5A.

4.5 Maximum power consumption

DC voltage type: under 220VDC, no more than 3W.

4.6 Insulation resistance: Use an open-circuit voltage 500V megger to measure the insulation resistance between the exposed non-charged metal parts or shells of the relays connected to each conductive terminal and should not be less than 10MΩ.

4.7 Insulation withstand voltage: each lead-out terminal to the housing locking screw can withstand a power frequency voltage of 2000V, and the same group of contacts can withstand a power frequency voltage of 1000V, which lasts for one minute without breakdown.

4.8 Anti-interference performance: Comply with the national GB6162-85 "Electrical interference test of static relays and protection devices" standard.

4.9 Electrical life: In the DC250V circuit, cut off the current τ=5ms, 50W, more than 104 times.

4.10 Mechanical life: The contact is 3 million times in no-load state.

5 Structure type (see the relay structure size diagram for details)

5.1 Embedded board rear wiring structure AK11, AP11 and protruding board front wiring AQ11 rear view wiring diagram (subject to company product samples)

5.2 JK-1/18 structure rear view wiring diagram (subject to company product samples)

5.3 DZ-1 structure terminal block type terminal wiring diagram (subject to company product samples)

6 Use

Before energizing the relay, confirm whether the voltage level of the connected relay is consistent with the actual parameters, otherwise the relay may be damaged; check whether the relay is damaged during transportation and storage, and the relay screw fasteners should not be loose; if there are damaged parts, Please contact us to replace it for you.

7 Ordering instructions

When ordering, please indicate the relay model specification, quantity, structure type code, rated voltage and other requirements.
